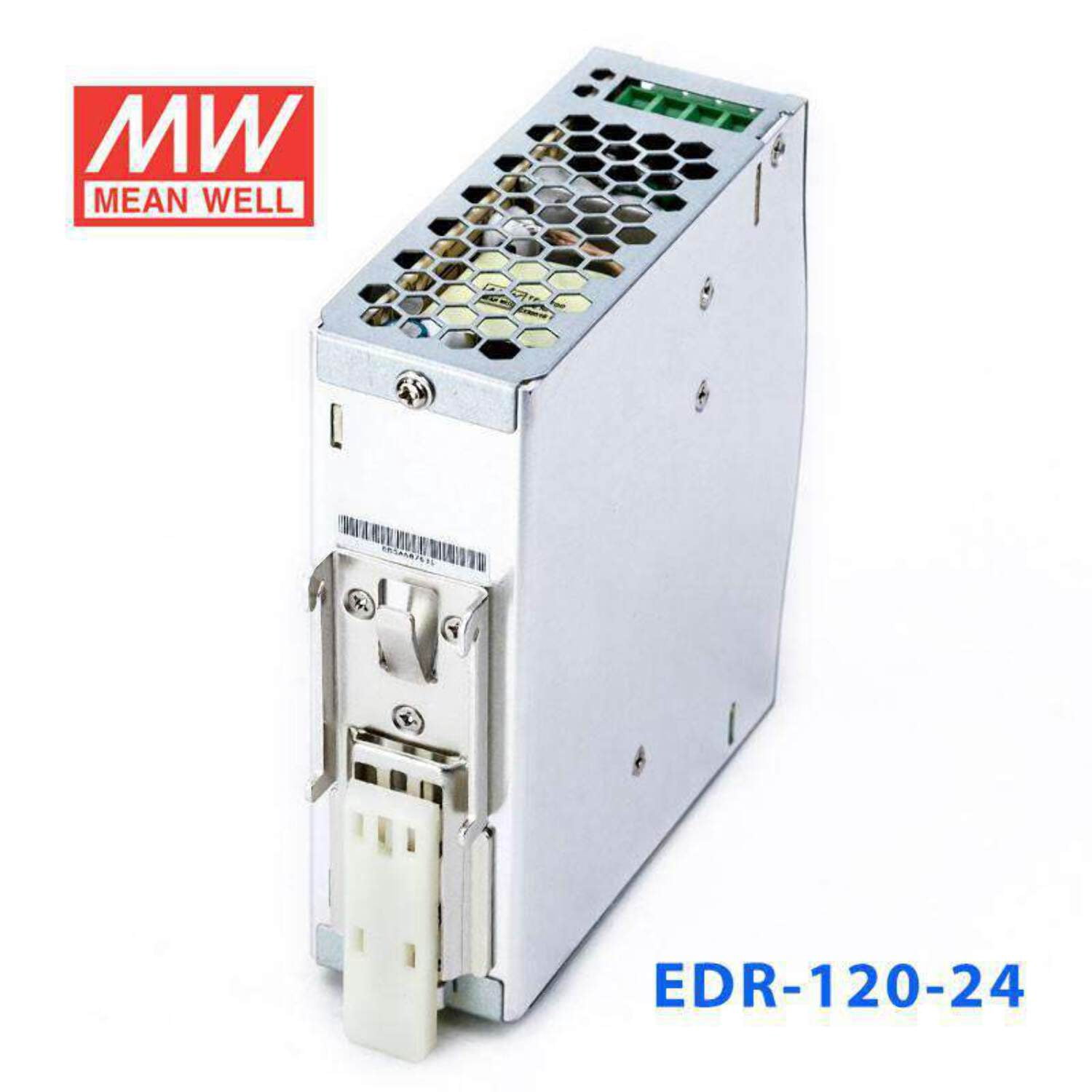

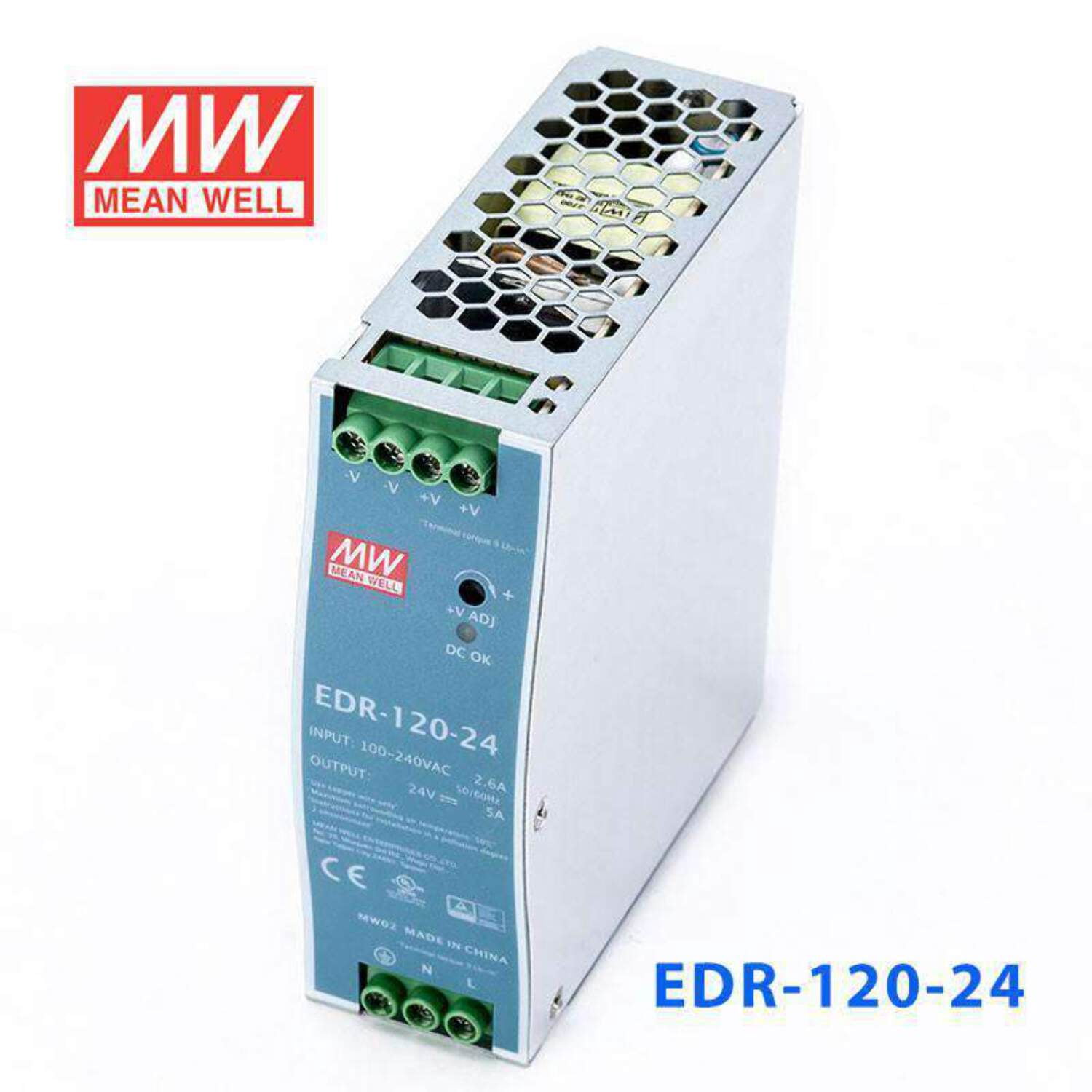

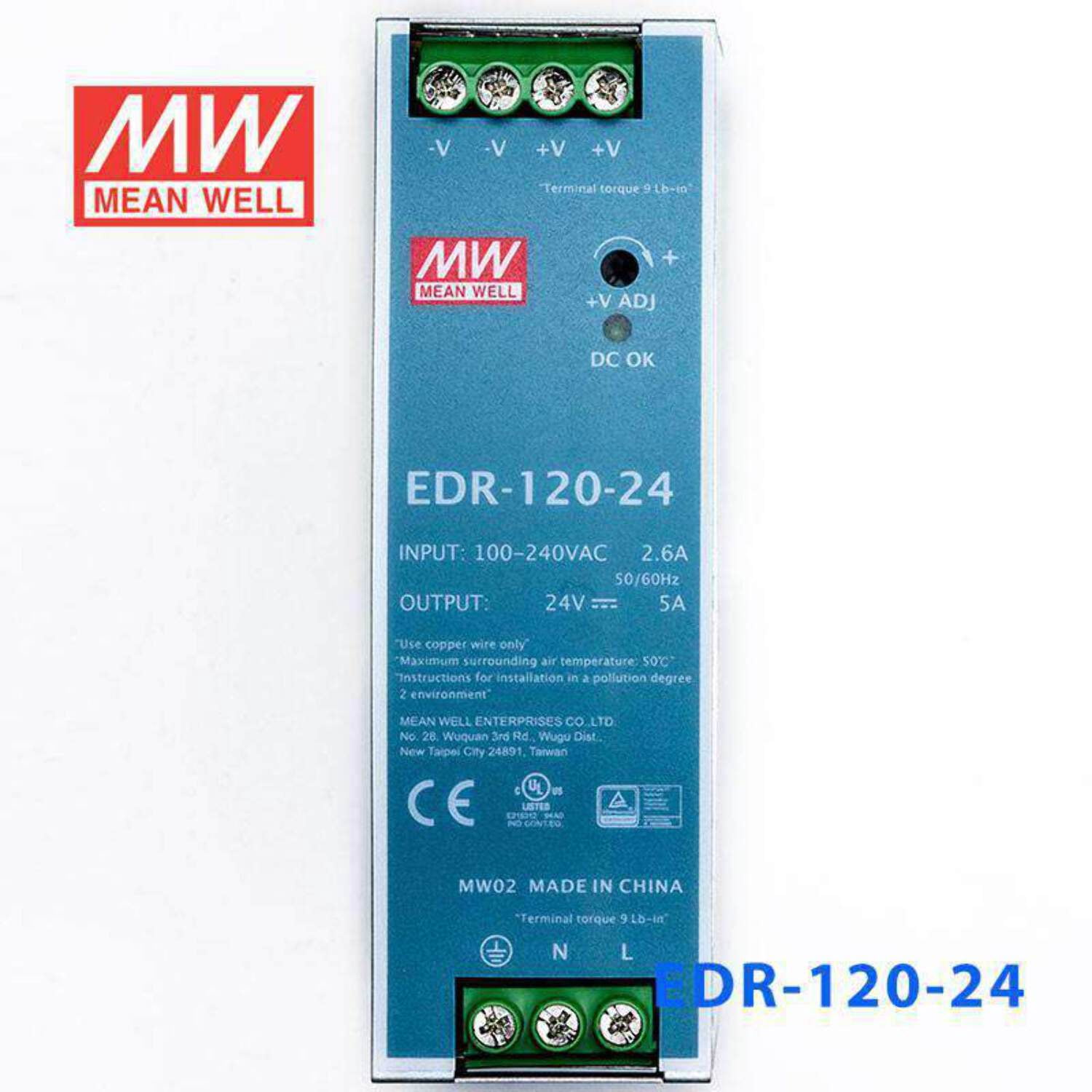

Mean Well EDR-120-24 Single Output Industrial Power Supply 120W 24V - DIN Rail

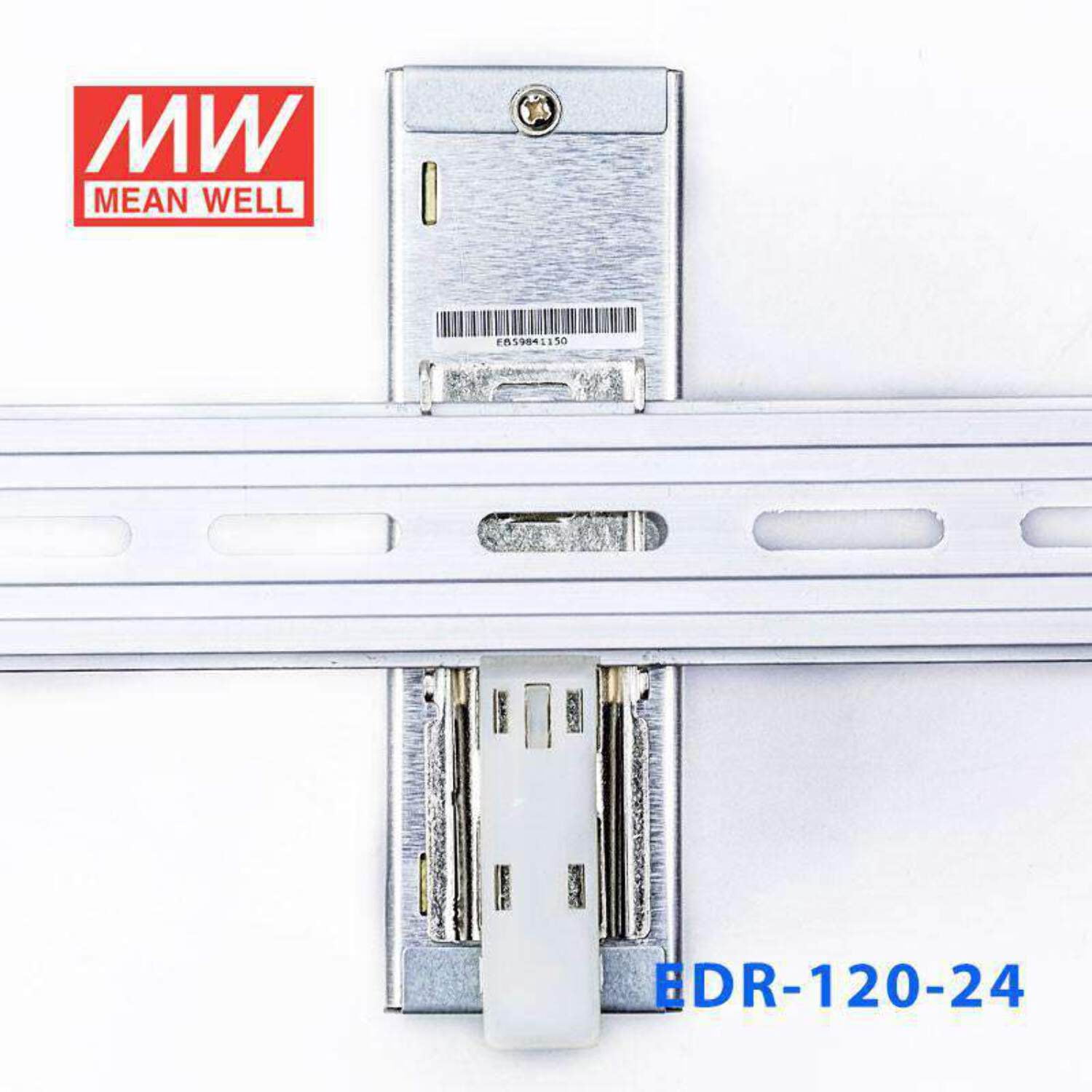

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage / Over temperature</td></tr><tr><td>Cooling by free air convection</td></tr><tr><td>Can be installed on DIN rail TS35 / 7.5 or 15</td></tr><tr><td>UL508 (industrial control equipment) listed</td></tr><tr><td>EN61000-6-2 (EN50082-2) industrial immunity level</td></tr><tr><td>100% full load burn-in test</td></tr><tr><td>Low cost</td></tr><tr><td>3 years warranty for NDR series <br> 2 years warranty for EDR series</td></tr><tr></tr><tr></tr><tr></tr><tr></tr><tr></tr><tr></tr></tbody></table><br><em></em> General Specification&nbsp;<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>90~264VAC; 127~370VDC</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 35A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>12V: 12~14V, 24V: 24~28V, 48V: 48~55V</td></tr><tr><td><strong>Current adjustment range </strong></td><td>10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance</td></tr><tr><td><strong>Overload protection</strong></td><td>105%~130% Constant current limiting, auto-recovery</td></tr><tr><td><strong>Over voltage protection</strong></td><td>14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Over temperature protection</strong></td><td>Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-20~+60!aC (refer to output derating curve</td></tr><tr><td><strong>Safety standards</strong></td><td>UL60950-1, TUV EN60950-1 approved</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)</td></tr><tr><td><strong>Connection (screw DIN terminal)</strong></td><td>I/P: 3 poles, O/P: 4 poles</td></tr><tr></tr><tr><td><strong>Dimension (LxWxH) (mm)</strong></td><td>40x 125.2x 113.5</td></tr></tbody></table>
