Mini Split HVAC Condensate Pump, Ultra Quiet < 20 dB, Automatic Condensation Drain Pump for Mini Split & Ducted HVAC Systems, 65 FT Lift, 40L/H, 110-240V, Compact Wall Mounted, ETL Certified
$105.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.reactechnology.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$105.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.reactechnology.com
Free 30-day returns Details
Product details
| Management number | 222064972 | Release Date | 2026/05/04 | List Price | $42.40 | Model Number | 222064972 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Mini Split & HVAC System Compatibility: The mini split condensate pump is designed for use with ductless mini split air conditioner systems and ducted HVAC equipment. It fits below indoor AC units and supports wall-mounted evaporators, helping manage condensate and water removal where gravity drainage is not available. This condensate pump is suitable for residential and light commercial air conditioning systems, dehumidifiers, and other HVAC units that generate condensation during normal operation.
- Ultra Quiet Operation: The mini split condensate pump is engineered for silent operation, helping maintain a quiet indoor environment. Vibration-dampening construction and a fully potted motor reduce operating noise while supporting smooth condensate drainage. With sound levels at ≤20 dB(A) @ 1 m, this HVAC condensate pump is suitable for bedrooms, offices, and other noise-sensitive spaces where quiet performance is important.

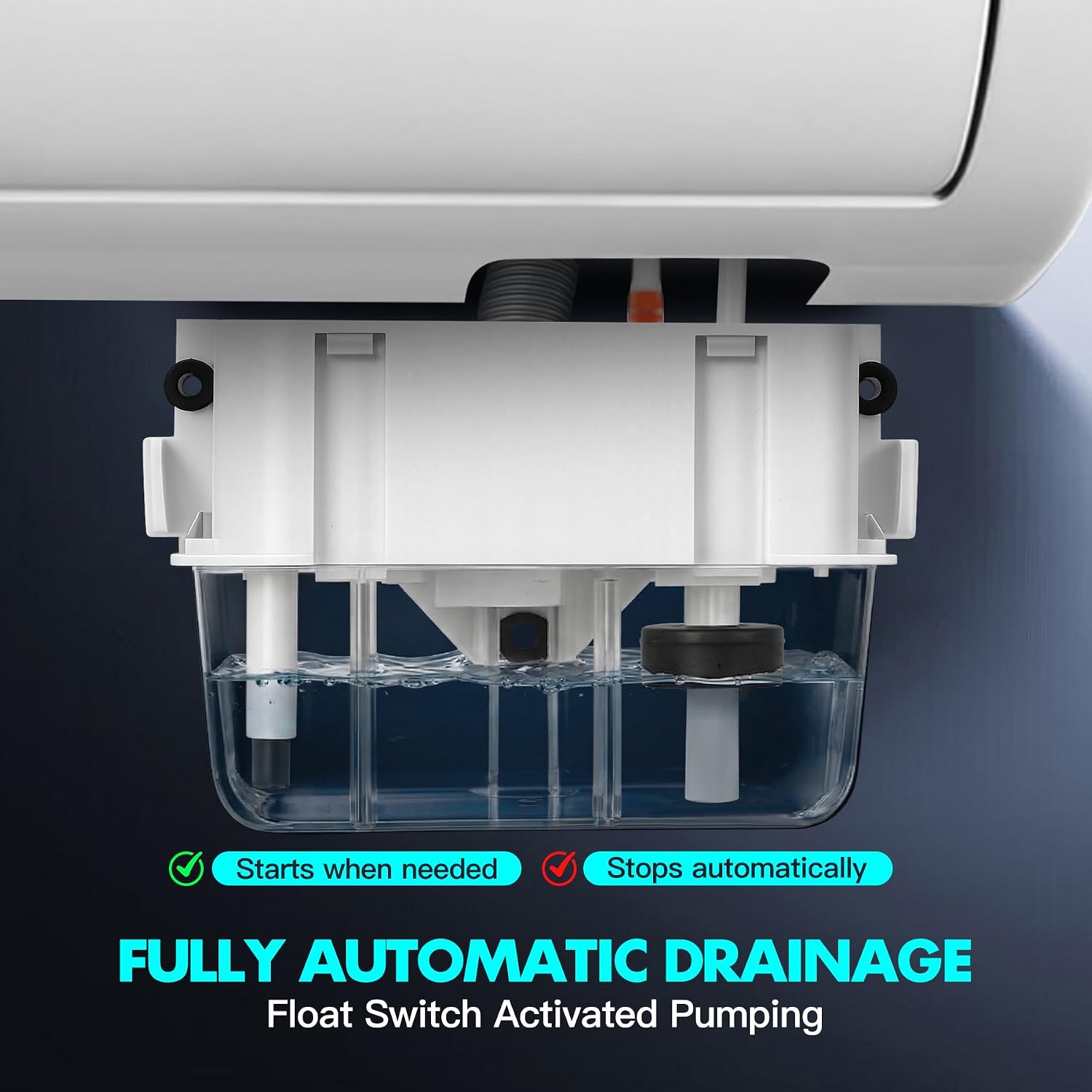

- Fully Automatic Float Switch Operation: The mini split condensate pump uses float switch detection to automatically control pump operation based on water level inside the reservoir. As condensate rises, the float activates the pump to remove water; when the level drops, the pump stops automatically. This automatic start-stop function helps reduce overflow risk and supports efficient condensate removal in mini split and HVAC systems.

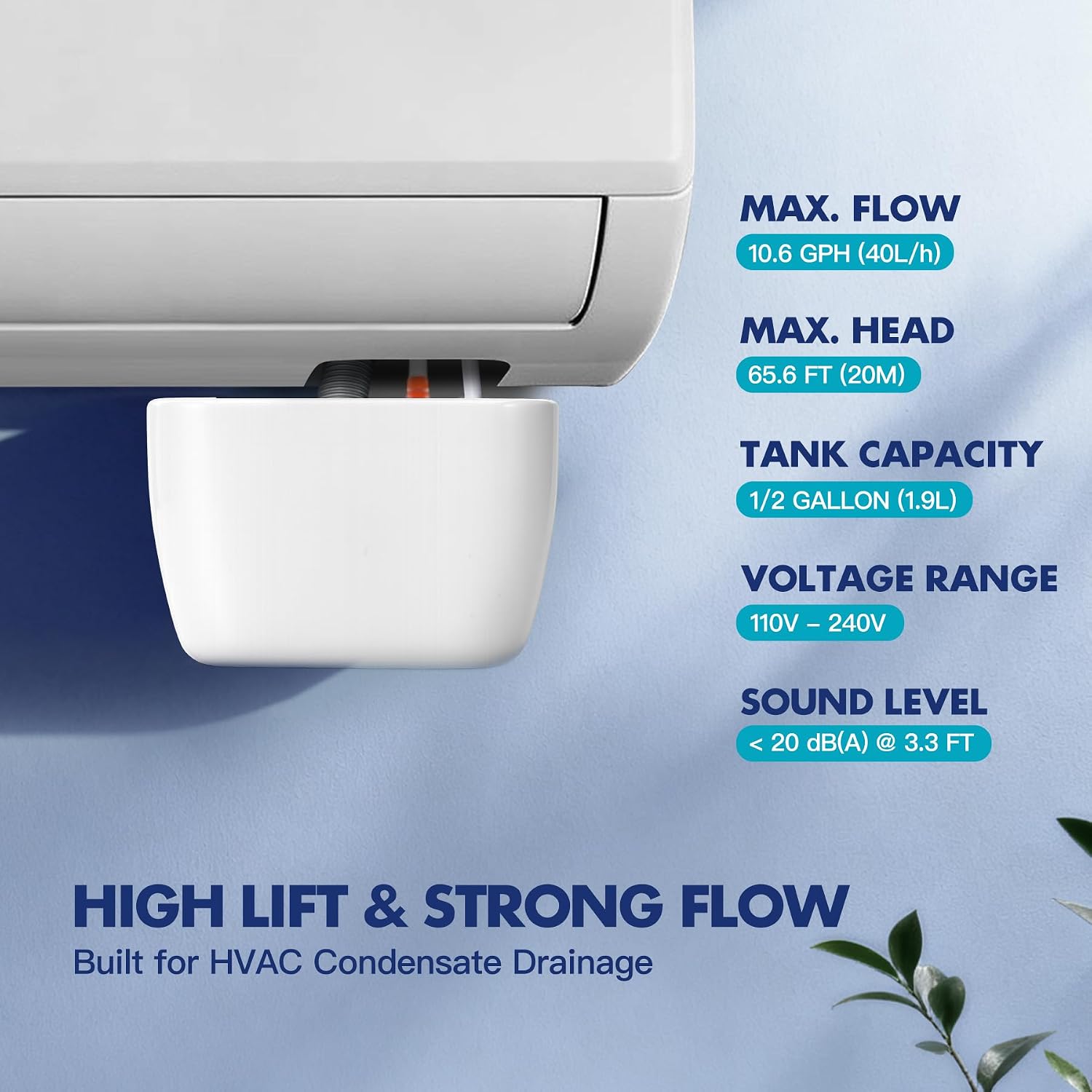

- High Performance Drainage: The mini split condensate pump delivers a maximum flow rate of 40 L/h (10.6 GPH) @ 0 head and a maximum discharge head of 20 m (65.6 ft). The high-efficiency motor supports fast, reliable condensate drainage for typical AC and HVAC drain lines. Rated for continuous operation, this condensate pump provides dependable performance for everyday air conditioning and dehumidifier applications.
- Built-In Safety & Protection: The mini split condensate pump includes a 3A normally closed safety switch for overflow protection and supports stable system operation. A fully potted motor offers resistance to moisture and vibration, while thermal protection helps prevent overheating. An included anti-siphon valve helps prevent backflow and supports consistent water retention inside the pump.
- Compact Design & Flexible Installation: The mini split condensate pump features a compact split-style design with overall dimensions of 164 × 70 × 106 mm (L × W × H). The slim structure allows flexible placement near indoor units or external wall-mounted locations. This compact design fits easily into tight spaces commonly found with mini split and HVAC installations.
- Package Contents & ETL Certification: The mini split condensate pump kit includes: pump assembly ×1, anti-siphon connector ×1, 150 mm / 6" vinyl tube (6 mm / 1/4" ID) ×1, fuse ×1, expansion screws ×3, and cable ties ×5. The HVAC condensate pump is ETL certified for indoor use, supporting safety and compliance expectations in US market applications.
| Color | White |
|---|---|
| Voltage | 110 Volts (AC), 240 Volts (AC) |
| Flow Rate | 40 Liters Per Hour |
| Brand Name | GuardFlow |
| Unit Count | 1.0 Count |
| Manufacturer | GuardFlow |
| Power Source | Corded Electric |
| Material Type | Plastic |
| Maximum Lifting Height | 65 Feet |
| Item Dimensions L x W x H | 6.46"L x 2.76"W x 4.17"H |
| Specific Uses For Product | Mini Split HVAC Condensate Pump |
